Solar LED Street
Light System

BBE Solar LEDTM, with the advantage of minimized operation costs, free maintenance, non-pollution energy, BBELED® solar lighting system is a good choice to improve energy efficiency and reduce CO² emission, no city grids required, no utility bills charged, easy installation and free maintenance.

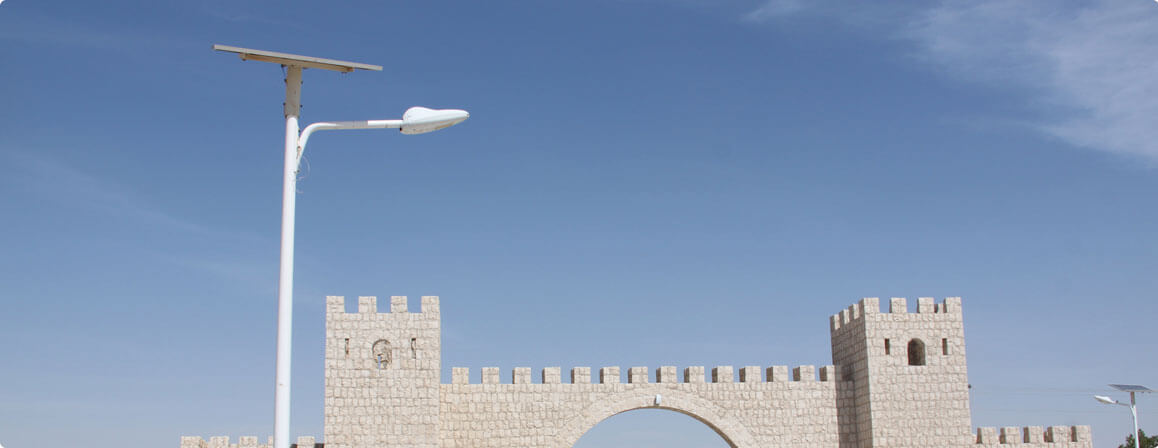

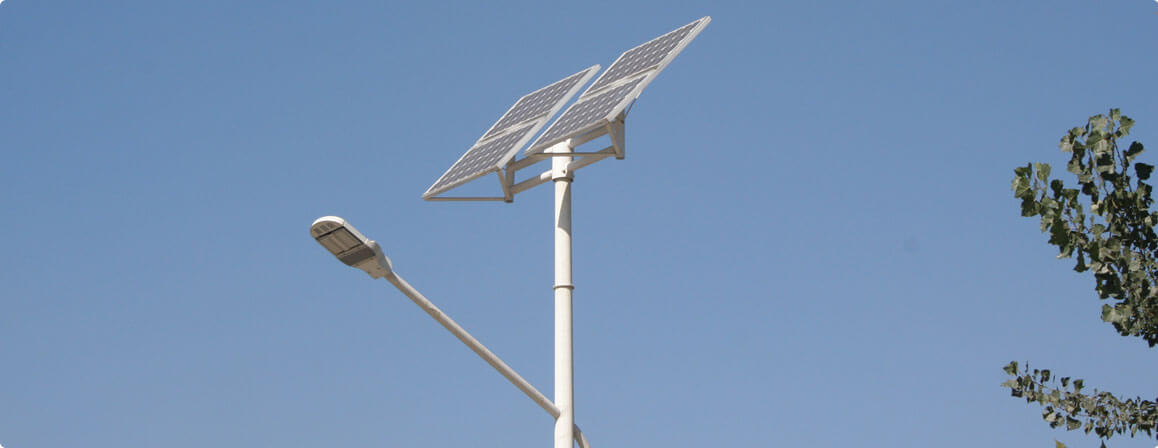

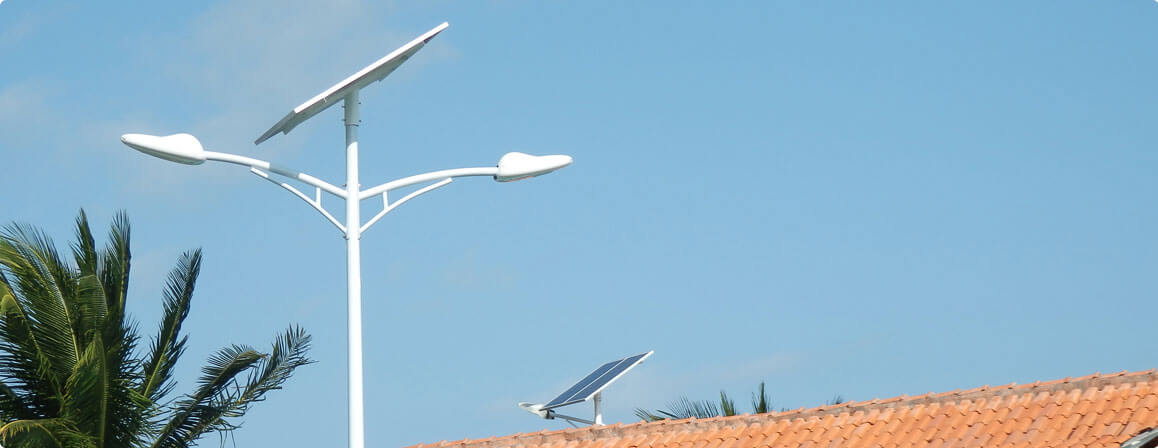

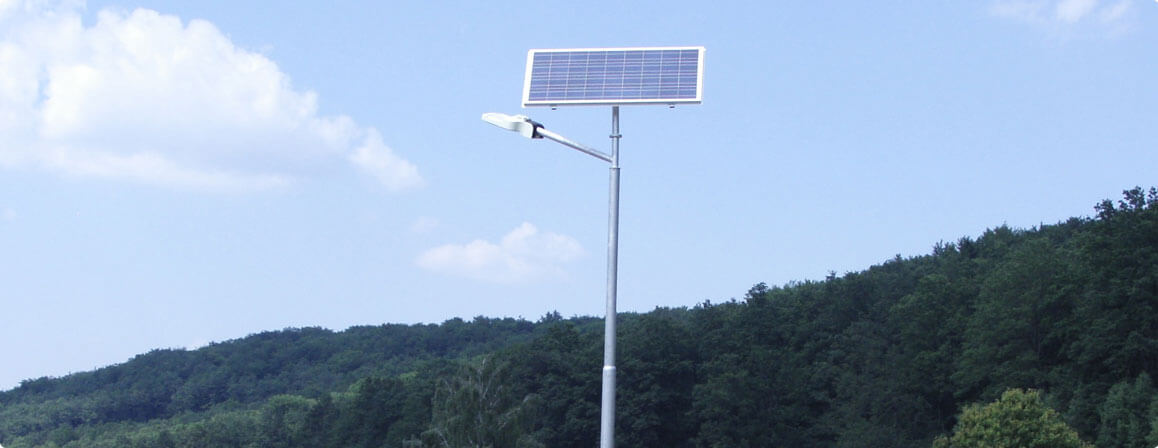

Solar LED street lighting system application

Major roadways, residential roadways, pedestrian walkways, parking lots, docks and piers, remote and rural locations.

BBE Solar LED Street lighting system configuration (for reference only)

Luminaire power (Watt) 30 35 60 70 90 120
LED Luminaire LS1/L30 LU1 LS2/U2/L60 LU2 LS3 LS4/U4
Solar panel (Wp) 130*1 150*1 130*2 160*2 190*2 130*4
Battery (Ah) 150*1 150*1 150*2 80*4 200*2 250*2
Controller (Amp) 10 10 10 10 20 20

* The above Solar LED street lighting system configuration is designed based on the below data, for reference only, the system must be customized based on the relative data, please contact your sales engineer for the solutions only for you.

BBE Solar LED Street lighting system main parts

BBE LED street light

Model LS1 L30 LU1 LS2 U2 L60 LU2 LS3 LS4 U4
Watts (W) 30 30 35 60 60 60 70 90 120 120
Input (Vdc) 12/24
Lumen Efficiency Up to 100Lm/W
CRI 70 rated
Optics 1VS:120*60, 1S:140*60, Type 2MS, Type 2ML, Type3M
Working temp. -30~50℃
Lifetime 50,000 hours (L70@Ta=25℃)
Warranty 5 years limited

Pls refer to BBE LED street light specifications for the details.

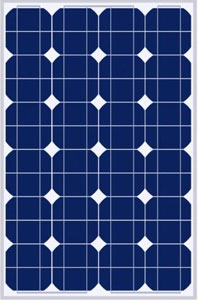

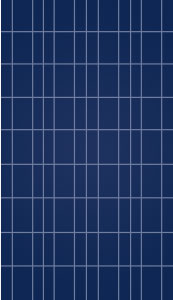

PV Solar Panel

Mono-crystalline
Mono-crystalline

Mono-crystalline
Mono-crystalline

Model no. Max. Power (Wp) Max. Operating Voltage(V) Max. Operating Current(A) Open Circuit Voltage(V) Short Circuit Current(A) Dimension (mm) Weight
(Kg)
MSP70 70 18 3.89 22.5 4.10 720 × 660 × 25 5.2
MSP80 80 18 4.44 22.7 4.66 765 × 660 × 25 5.5
MSP90 90 18 5.00 22.5 5.25 905 × 660 × 25 6.5
MSP100 100 18 5.56 22.5 5.84 1005 × 665 × 25 7.5
MSP110 110 18 6.11 22.7 6.43 1005 × 665 × 30 7.5
MSP120 120 18 6.67 22.5 7.02 1195 × 665 × 30 9.0
MSP130 130 18 7.22 22.5 7.58 1285 × 665 × 30 9.7
MSP140 140 18 7.78 22.3 8.40 1480 × 665 × 30 11.1
MSP150 150 18 8.33 22.5 8.54 1480 × 665 × 30 11.1
MSP160 160 18 8.89 22.7 8.67 1480 × 665 × 30 11.4

1. The above data is based on mono-crystalline solar panel, poly-crystalline solar panel are available for options. Other power solar panels are available for options.
2. All data above are tested at environment: AM=1.5, E=1000W/m2, Tc=25℃
3. Specifications subject to change without notification

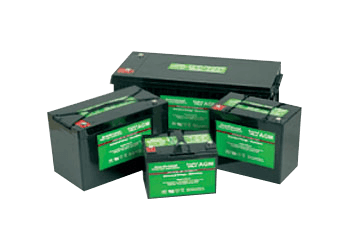

Battery

Battery

Model Rated Voltage(V) Nominal Capacity(Ah) Dimension(mm) Terminal
    20HR 10HR 5HR 3HR 1HR L*W*H
    1.80V/Cell 1.80V/Cell 1.75V/Cell 1.75V/Cell 1.67V/Cell
GB60 12 63.8 60 52.5 47.0 35.3 325 × 167 × 174 T6
GB 65 12 69.2 65 56.9 50.9 38.2 259 × 168 × 208 T6
GB 80 12 85.1 80 70.0 62.6 47.0 305 × 168 × 207 T6
GB 90 12 95.8 90 78.8 70.4 52.9 330 × 173 × 212 T11
GB 100 12 106 100 87.5 78.3 58.8 410 × 177 × 225 T11
GB 120 12 128 120 105.0 93.9 70.6 344 × 171 × 274 T11
GB 150 12 160 150 131 117 88.2 522 × 240 × 218 T11
GB 200 12 213 200 175 157 118 522 × 240 × 218 T11

1.The above data is based on GEL battery, AGM battery and other capacity batteries are available for options.
2. Specifications subject to change without notification

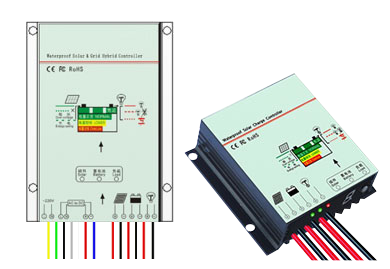

Solar Charger Controller

Solar Charger Controller

Model No. SCW-10A SCW-15A SCW-20A
Rated Load Current 10A 15A 20A
System Voltage 12V/24V AUTO
Over Voltage Protection 17V, x2/24V
Over Load Circuit Protection 1.25 times rated current for 60 seconds Or 1.5 times rated current for 5 seconds.
Short Circuit Protection 3 times rated current
Float Voltage 13.6V, x2/24V
Boost Voltage 14.6V, x2/24V (Duration: 10 minutes; Only available for over discharge)
Temperature Compensation -3mv/℃/2V (boost, equalizing, floating, charge return voltage compensation)
Charging Return Voltage 13.2V, x2/24V
Over Discharging Return Voltage 12.6V, x2/24V

Working temperature: -35℃ to 55℃; Solar grid hybrid controller is available, pls contact your sales engineer for the details.
Specifications subject to change without notification

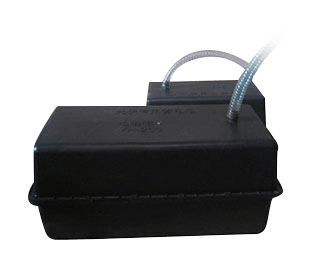

Battery box

Battery box

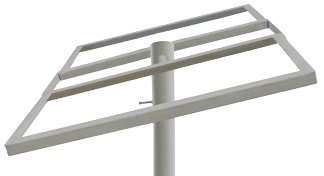

Solar Panel Bracket

Solar Panel Bracket

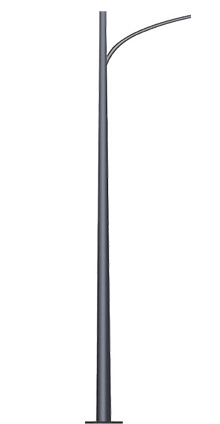

Pole

Pole

How to customize your solar LED street lighting system?

Input

  • 1. Which LED street light from BBE or how many watts of the LED street light you want?
  • 2. What is the geographical location your solar LED street lighting system will be installed?
  • 3. How many hours per night the LED street light works?
  • 4. How many days to backup in case of continuous rainy days?
  • 5. Do you need dimming the LED street light (during the off-peak hours)?
  • 6. Do you have any other requirements?

Output

BBE’s profession team will provide you a full report about the solar LED street lighting system including:

  • 1. Configuration.
  • 2. Different parts covered with the specifications.
  • 3. Quotations with shipping & payment terms.
  • 4. The other information you specified.

1. The input information above is the must to make the solar LED street lighting system solution for you, we can do nothing without such information.
2. Pls contact your sales engineer for help if you need a DIALUX simulation report to confirm which BBE LED street light is needed to meet your target. Some other information might need to make the DIALUX report.
3. If any, pls tell us your dimming mode or contact your sales engineer for recommendations and support
