LED Street Light UTM Series

BBELED® UTM series had been optimized to flat heat sink and fixed water proof driver, which avoided debris buildup on
the surface, offered the consistent heat dissipation of the luminaire. The UTM provided the same concept of
rectangular beam and modular design, it is a more economic and competitive LED street light.

Features and Specifications

Application

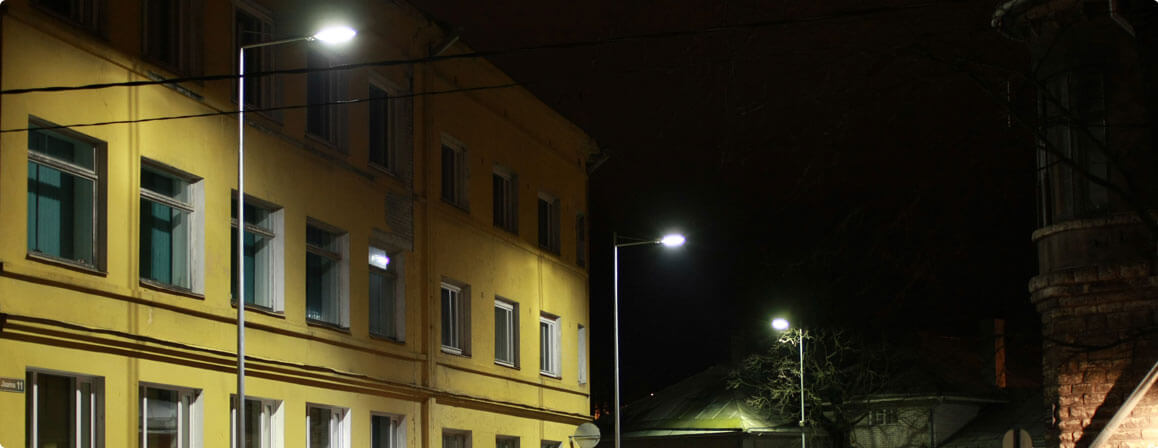

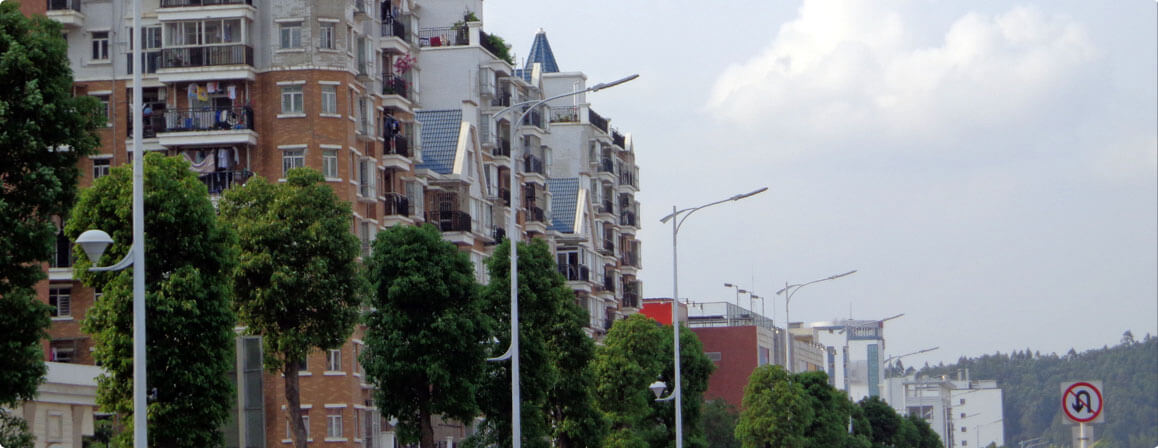

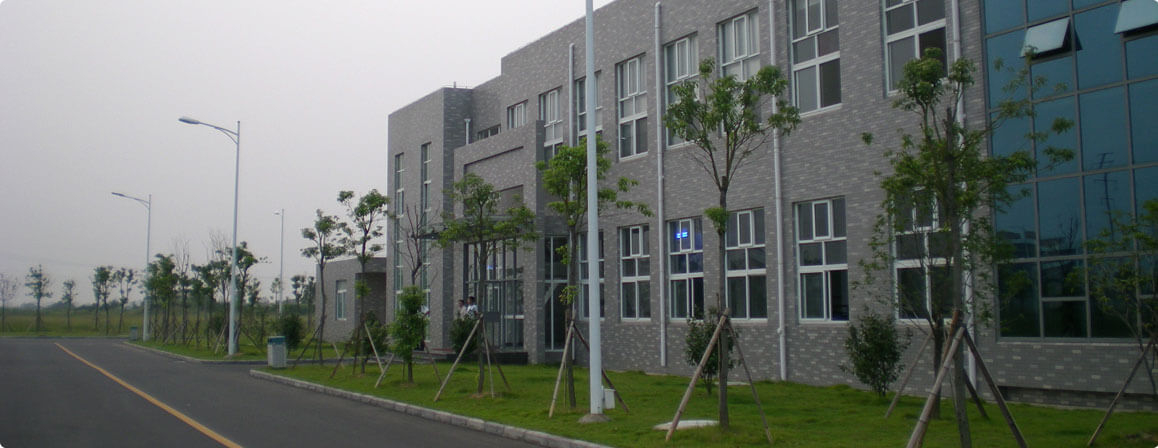

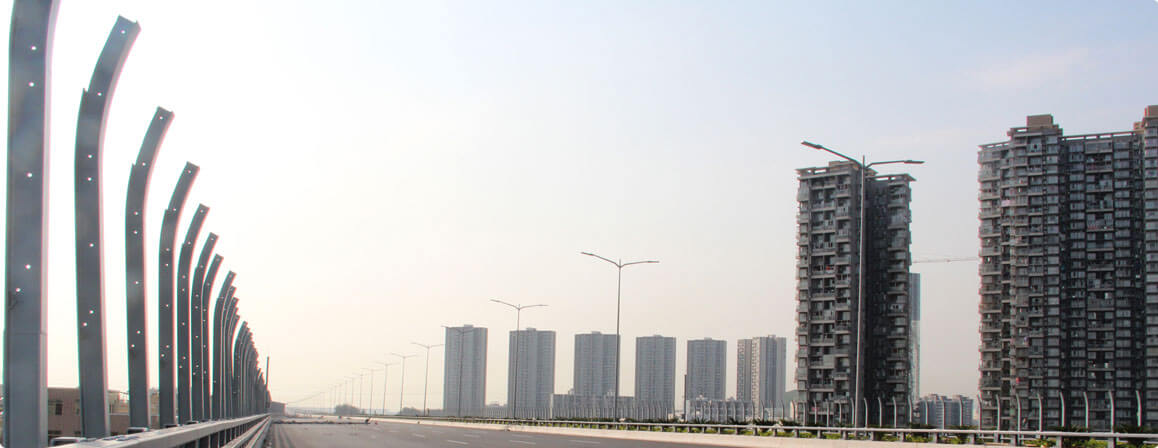

General lighting for all kinds of roadways, avenues, street etc., and even area and site lighting for parking lot,
playground, sport area etc. Available to replace traditional MH or HPS luminaires.

  • BBE, LED Street Lights
  • LED Street Lights, U Series
  • LED Street Lights, U Series
  • BBE, LED Street Lights

Construction

LED & Optics

Electronics

Universal driver is available in 100-240Vac, 50/60Hz, power factor > 90% and THD<20%.

IP67 waterproof driver with over current, over voltage, and short circuit protection.

Listings

CE approved, CB tested by TUV, RoHS compliant

Warranty

5 years limited

Note: all specifications subject to change without notice.

Street Light U Dimension

dimension is in mm (inch), kg(lb)

Dimension & Weight

  U2 U4 U6 U8
L 568 (22.4”) 735 (28.9”) 902 (35.5”) 1069(42.1”)
W 320 (12.6”) 320 (12.6”) 320 (12.6”) 320 (12.6”)
H 129 (5.1’) 129 (5.1’) 129 (5.1’) 129 (5.1’)
Weight 5.6 (12.3lb) 8.8 (19.4lb) 11.4 (25.1lb) 15(33.1lb)
Shipping data
CBM n/a n/a n/a n/a
G.W. n/a n/a n/a n/a

Ordering information:Example: U2-EPW1SL1-PC

Series #of module - Voltage CCT Optics LED Bin - Options
U 2 - E PW 1S L1 - PC
SD 2
4
6
8
E: 100-240Vac
D11: 12V/24Vdc
NW:
4000-4500K
PW:
5000-5800K
VS: 120 × 60
1S: 140 × 60
3S: Type 3S
L1: Level 1 (standard)
L4: Level 4 (hi-efficiency)

PR2: photocell receptacle

PC2: photocell control

*Consult your sales representative for the options and the lead time will be varied depending on the options selected.
1: Only available for U/2/4.
2: Not available for voltage D (12/24Vdc)

Electrical Data:

Number of LEDs LED drive current(mA) Rated Power(W) Total Current (Amp)
120V 220V 230V 240V
U2 48 350 60 0.48 0.27 0.26 0.25
U4 96 350 120 0.942 0.514 0.49 0.477
U6 144 350 180 1.418 0.781 0.747 0.726
U8 192 350 240 1.912 1.151 1.01 0.96

Optical & Photometric

IESNA Type I
IESNA Type I
VS 1S
IESNA Type III
3S
Cat No. CCT Power (W) Initial Lumen (lm) Efficiency (LPW) Optics LED Bin IES file IES date (mm/dd/yy)
U2-EPW1SL1 5000-5800K 56 5391 96 1S L1 U2-EPW1SL1.ies 03/14/14
U2-EPW1SL4 5000-5800K 56 5761 103 1S L4 U2-EPW1SL4.ies 04/28/14
U2-EPWVSL1 5000-5800K 56 5265 94 VS L1 U2-EPWVSL1.ies 04/15/14
U2-EPWVSL4 5000-5800K 56 5627 100 VS L4 U2-EPWVSL4.ies 04/28/14
U2-EPW3SL1 5000-5800K 56 5328 95 3S L1 U2-EPW3SL1.ies 04/09/14
U2-EPW3SL4 5000-5800K 56 5694 102 3S L4 U2-EPW3SL4.ies 04/30/14
U4-EPW1SL1 5000-5800K 110 10536 96 1S L1 U4-EPW1SL1.ies 03/14/14
U4-EPW1SL4 5000-5800K 110 11334 103 1S L4 U4-EPW1SL4.ies 04/28/14
U4-EPWVSL1 5000-5800K 110 10297 94 VS L1 U4-EPWVSL1.ies 04/15/14
U4-EPWVSL4 5000-5800K 110 11070 101 VS L4 U4-EPWVSL4.ies 04/28/14
U4-EPW3SL1 5000-5800K 110 10414 95 3S L1 U4-EPW3SL1.ies 04/09/14
U4-EPW3SL4 5000-5800K 110 11202 102 3S L4 U4-EPW3SL4.ies 04/30/14
U6-EPW1SL1 5000-5800K 166 15804 95 1S L1 U6-EPW1SL1.ies 03/14/14
U6-EPW1SL4 5000-5800K 166 17066 103 1S L4 U6-EPW1SL4.ies 04/28/14
U6-EPWVSL1 5000-5800K 166 15437 93 VS L1 U6-EPWVSL1.ies 04/15/14
U6-EPWVSL4 5000-5800K 166 16669 100 VS L4 U6-EPWVSL4.ies 04/28/14
U6-EPW3SL1 5000-5800K 166 15709 95 3S L1 U6-EPW3SL1.ies 04/09/14
U6-EPW3SL4 5000-5800K 166 16868 102 3S L4 U6-EPW3SL4.ies 04/30/14
U8-EPW1SL1 5000-5800K 220 21073 96 1S L1 U8-EPW1SL1.ies 01/14/14
U8-EPW1SL4 5000-5800K 220 22668 103 1S L4 U8-EPW1SL4.ies 01/14/14
U8-EPWVSL1 5000-5800K 220 20583 94 VS L1 U8-EPWVSL1.ies 01/15/14
U8-EPWVSL4 5000-5800K 220 22141 101 VS L4 U8-EPWVSL4.ies 04/28/14
U8-EPW3SL1 5000-5800K 220 20828 95 3S L1 U8-EPW3SL1.ies 04/10/14
U8-EPW3SL4 5000-5800K 220 22404 102 3S L4 U8-EPW3SL4.ies 04/30/14

*The above data is based on BBELED lab test result, and is kept updating, changes will be not informed.
