BBE^® LED High Bay
Square HBS^TM series

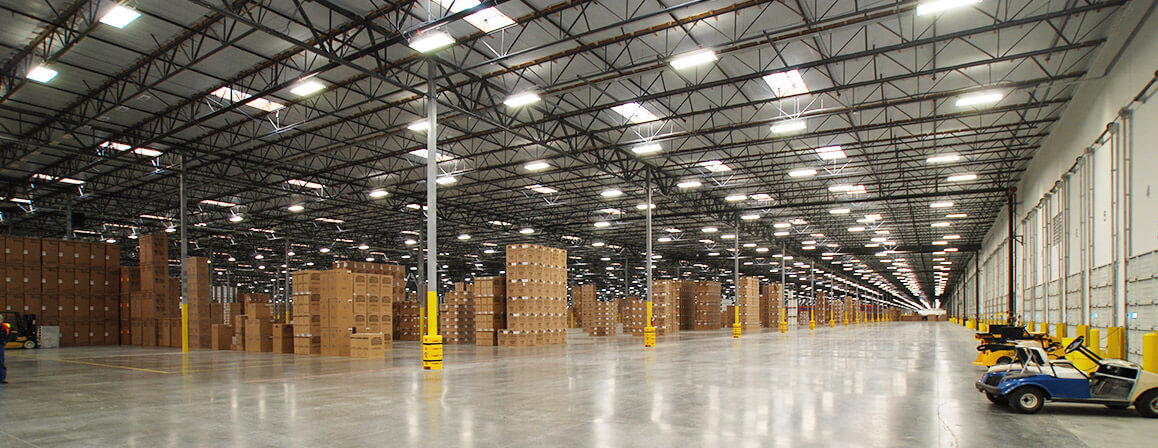

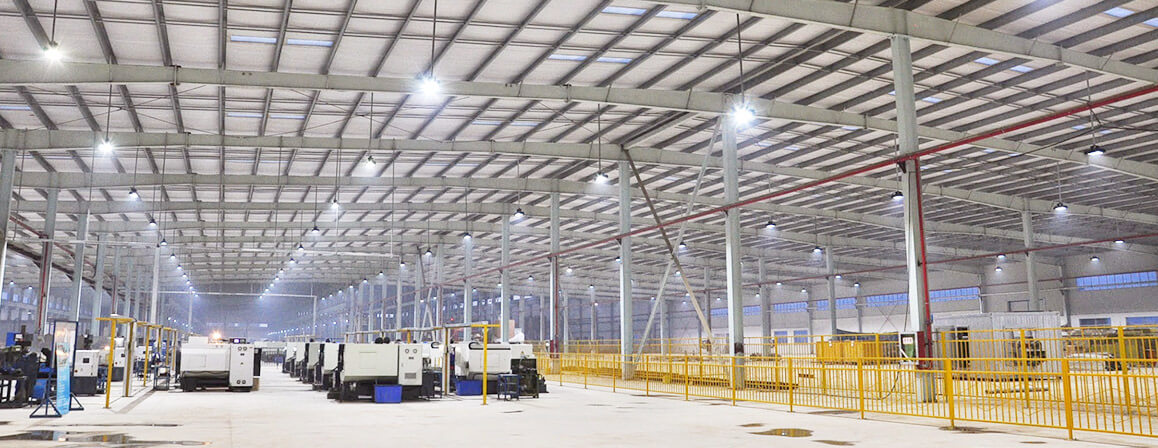

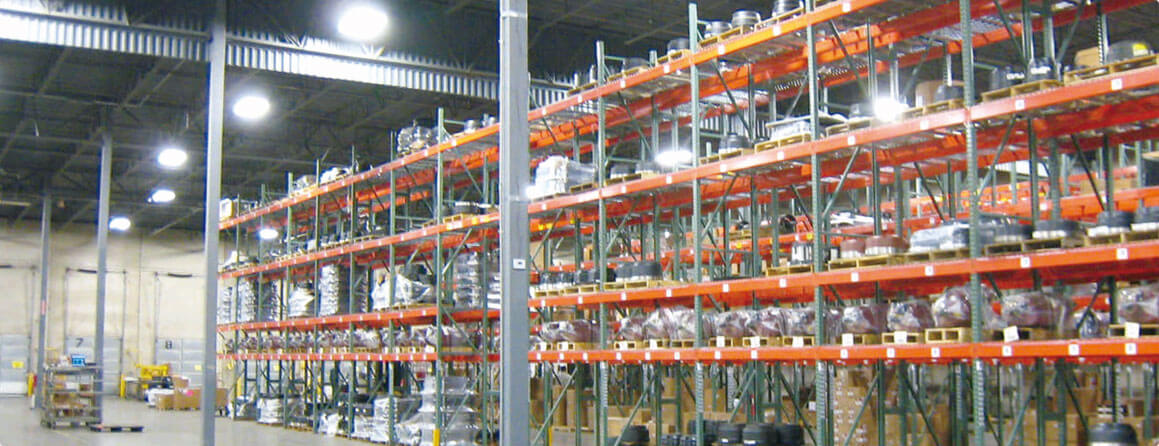

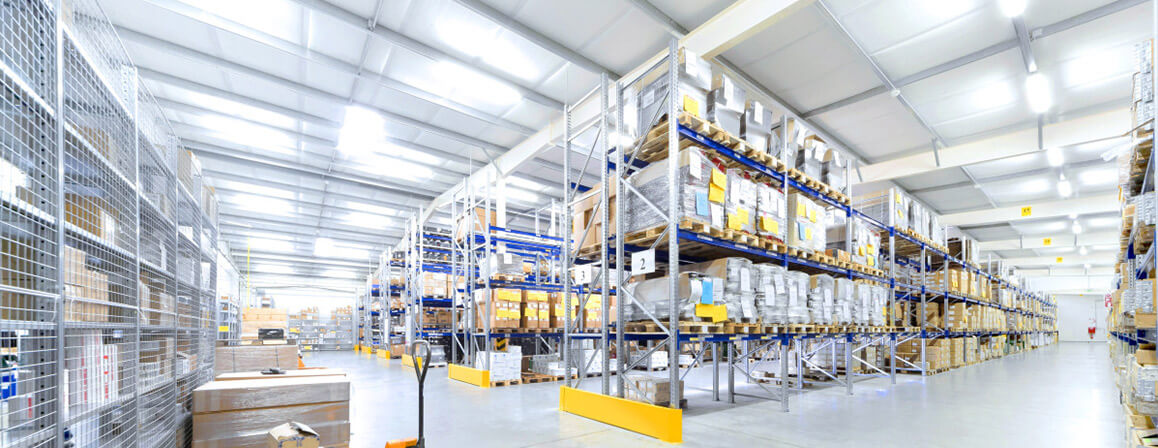

BBE LED High Bay lighting luminaire are widely applicable for industrial and commercial buildings with significant energy saving, such as manufacturing plant, logistic hub, storage warehouse,market place, sport arena, airport, seaport, gas station and petroleum utility etc. where most of the lighting system has to work for over 12 hours per day or even 24/7 operation for manufacturing plant.

- Input Voltage: 100-277Vac 50/60Hz
- Color Temperature: 4000K/5700K (+/-300K)
- Working Life: L70>50000h @ Ta 40 ^oC
- Work Temp.: -40~45 ^oC
- Listing: UL/CUL, SAA, CE, CB approved, RoHS compliant
- Power Factor: >0.95
- Up to 115LPW
- THD: <15%
- Warranty: 5 years limited

Features and Specifications

Application

BBE LED High Bay light HBS series was designed specially to replace conventional light in a wide variety of industrial
and warehouse applications.

BBE^® LED High Bay Square HBS^TM Series

V4: HBS-27/03/17

Construction

Robust die-cast aluminum luminaire body painted in epoxy powder coating in black.
Air-flow heat sink allows for fast air movement as the perfect cooling system to ensure the performance and longevity.
The luminaire assembly meets dust and moisture rating of IP65 per IEC60529 and impact protection of IK08 per EN62262, ensure long life and protection from the environment.
Rod mounting, hook with chain mounting and heavy duty steel yoke mounting are available.

LED & Optics

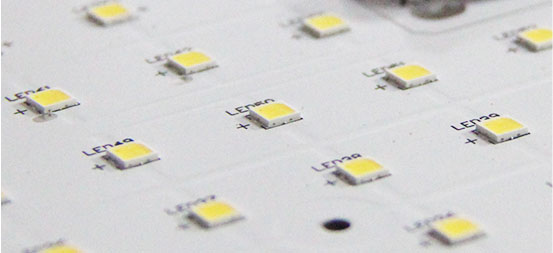

Highly efficient LM80 approved NICHIA LED is applied for maximum efficiency and long life (calculated L70 > 50,000h @ Ta=40 oC). Color temperature in warm white 4000K and pure white 5700K with CRI 70+ are available, CRI>80 is optional. LPW up to 115 is available.

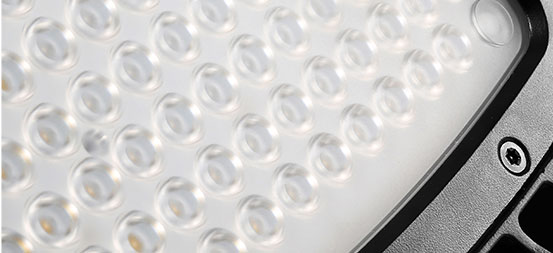

Optics lens in 60, 90 & flat tempered glass in 120 degree options with over 90% efficiency reduces light loss significantly.

Optics & Photometric

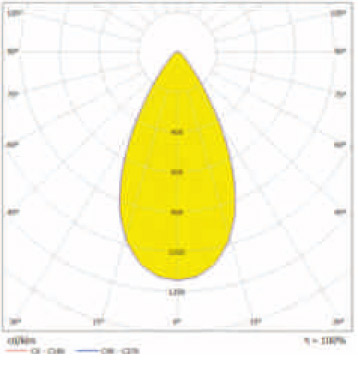

M:60 degree

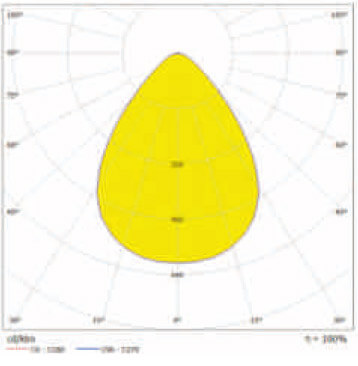

W:90 degree

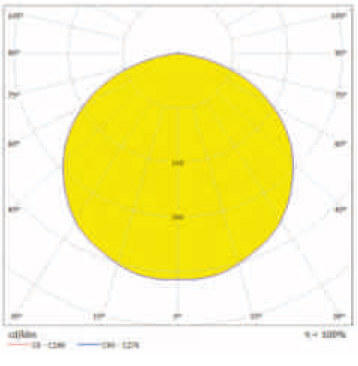

W:120 degree

Cat. No.	Number of LED(pcs)	CCT	Rated Lumen(lm)	Rated Power(W)	Efficiency (LPW)	L70@25 ^oC	Driver Life @25^oC
HBS100	90	4000K/5000K/5700K	11000	100	110	>50000h	>50000h
HBS120	135	4000K/5000K/5700K	14400	120	120	>50000h	>50000h
HBS135	135	4000K/5000K/5700K	15500	135	115	>50000h	>50000h
HBS150	135	4000K/5000K/5700K	16500	150	110	>50000h	>50000h

Electronics

MEANWELL driver in 100-277Vac, 50/60Hz, power factor > 95% and THD <15%, IP65 waterproofed.
PWM or 0-10V dimming is available.
Over current, short circuit, over voltage and over temperature protections are integrated.

Listings

UL/CUL, SAA, CE, CB approved, RoHS compliant.

Warranty

5 years limited.

* All the specifications is subjected to changes without notice.
