BBELED® ETM series improved the finned heat sink to tubal design, compact and efficiency, more important,
it is much easier to use a high pressure pump to wash it, to sweep away the oily dusty on the luminaire and bracket.

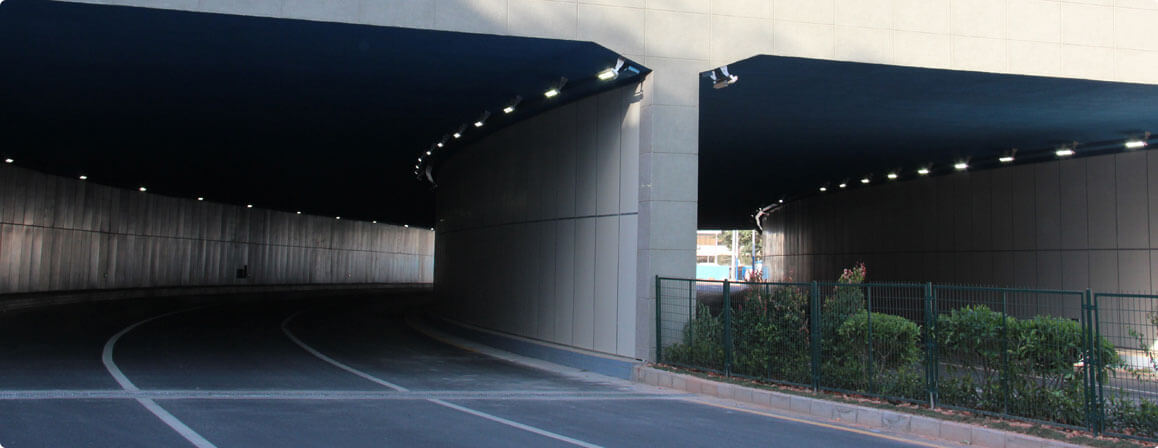

The ETM LED tunnel light is the best choice for both tunnel and underpass lighting till now.

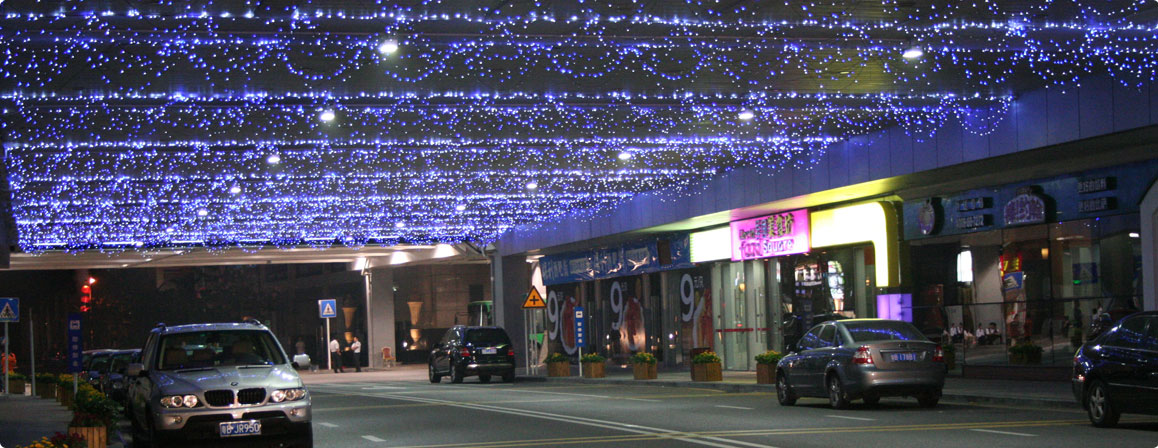

Lighting for tunnels, toll station, platform, underpass, warehouse, sport area, billboard,and architectural buildings.
Available to replace traditional MH or HPS lamp up to 600W
Air-flow through anodized heat sink design provides perfect heat management to guarantee long life of the LED.
Modular design optimizes construction and assembly, allows for easy maintenance, upgrade and SKD purchasing for local assembly.
Constant current driver is mounted far away from the heat source of the LED, keeps the stability and performance of the driver for long life.
The tough bolts were offered for the free angle adjustment to optimize the target illumination.
Unique junction box is applied for easy wiring connection and IP65 proofed.
IP65 (EN60529 compliant) rated to the luminaire

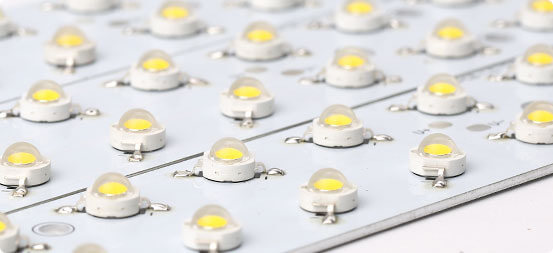

Eutectic led packaging technology is applied for low heat resistance, low light degradation, high efficiency and long life (Projected L70>50000h @ Ta 25C). High efficiency Pure white (5000-5800K) & Warm white (4000-4500K) with CRI 70 rated or customized CCT LED are available.

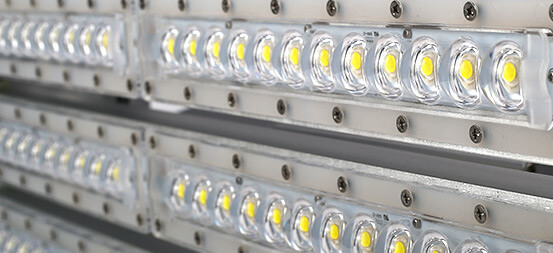

Precise optic lens in high intensity PC material with professional light distribution design provides high uniformity and optimal luminaire spacing, the optical system optimizes the light distribution, eliminate the waste of light, increase the reasonable and effective using of light.
Universal driver is available in 100-240Vac, 50/60Hz, power factor > 90% and THD <20%.
IP67 waterproof driver with over current, over voltage, and short circuit protection.
CE approved, CB tested by TUV, RoHS compliant
5 years limited
Note: all specifications subject to change without notice.
| E1 | E2 | E3 | E4 | E5 | E6 | E7 | E8 | ||
| L | 56(2.2”) | 114(4.5”) | 172(6.8”) | 230(9.1”) | 288(11.3”) | 347(13.7”) | 404(15.9”) | 462(18.2) | |
| W | 571(22.5”) | 571(22.5”) | 571(22.5”) | 571(22.5”) | 571(22.5”) | 571(22.5”) | 571(22.5”) | 571(22.5”) | |
| H | 323(12.7”) | 323(12.7”) | 323(12.7”) | 323(12.7”) | 323(12.7”) | 323(12.7”) | 323(12.7”) | 323(12.7”) | |
| Weight | 3.8(8.4lb) | 5.2(11.5”) | 6.5(14.3lb) | 8.3(18.3lb) | 9.4(20.7lb) | 10.6(23.4lb) | 13.3(29.3lb) | 15.9(35.1) | |
| Shipping data | |||||||||
| CBM | 0.024 | 0.033 | 0.063 | 0.075 | 0.088 | 0.099 | 0.112 | 0.124 | |
| G.W. | 5.0(11.0lb) | 6.5(14.3lb) | 7.8(17.2lb) | 9.5(20.9lb) | 12.8(28.2lb) | 14.5(32.0lb) | 15.8(34.8lb) | 17.0(37.5lb) | |
| Series | #of module | - | Voltage | CCT | Optics | LED Bin | - | Options |
| E | 4 | - | E | PW | D1 | L1 | - | |
| E | 1 2 3 4 5 6 7 8 |
E: 100-240Vac D11: 12/24VDC |
NW: 4000-4500K PW: 5000-5800K |
D1: 130 × 80 | L1: Level 1 (standard) L4: Level 4 (hi-efficiency) |
*Consult your sales representative for the options and the lead time will be varied depending on the options selected.
1: Only available for E1/2/3/4.
| Number of LEDs | LED drive current(mA) | Rated Power(W) | Total Current (Amp) | |||||
| 120V | 220V | 230V | 240V | |||||
| E1 | 24 | 350 | 30 | 0.246 | 0.139 | 0.134 | 0.13 | |
| E2 | 48 | 350 | 60 | 0.485 | 0.275 | 0.266 | 0.257 | |
| E3 | 72 | 350 | 90 | 0.742 | 0.397 | 0.383 | 0.367 | |
| E4 | 96 | 350 | 120 | 0.981 | 0.551 | 0.534 | 0.517 | |
| E5 | 120 | 350 | 150 | 1.23 | 0.68 | 0.65 | 0.63 | |
| E6 | 144 | 350 | 180 | 1.45 | 0.79 | 0.75 | 0.73 | |
| LS7 | 168 | 350 | 210 | 1.723 | 0.948 | 0.917 | 0.884 | |
| E8 | 192 | 350 | 240 | 1.973 | 1.112 | 1.072 | 1.04 | |

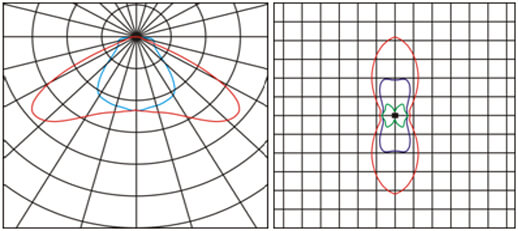

D1 is designed for 130 × 80 degree beam angel
| Cat No. | CCT | Power (W) | Initial Lumen (lm) | Efficiency (LPW) | Optics | LED bin | IES file | IES date (mm/dd/yy) |
| E1-EPWD1L1 | 5000-5800K | 31 | 2914 | 94 | D1 | L1 | E1-EPWD1L1.ies | 03/10/14 |
| E1-EPWD1L4 | 5000-5800K | 31 | 3178 | 103 | D1 | L4 | E1-EPWD1L4.ies | 04/30/14 |
| E2-EPWD1L1 | 5000-5800K | 57 | 5694 | 100 | D1 | L1 | E2-EPWD1L1.ies | 03/10/14 |
| E2-EPWD1L4 | 5000-5800K | 57 | 6224 | 109 | D1 | L4 | E2-EPWD1L4.ies | 04/30/14 |
| E3-EPWD1L1 | 5000-5800K | 87 | 8873 | 102 | D1 | L1 | E3-EPWD1L1.ies | 03/10/14 |
| E3-EPWD1L4 | 5000-5800K | 87 | 9674 | 111 | D1 | L4 | E3-EPWD1L4.ies | 04/30/14 |
| E4-EPWD1L1 | 5000-5800K | 116 | 11790 | 102 | D1 | L1 | E4-EPWD1L1.ies | 03/10/14 |
| E4-EPWD1L4 | 5000-5800K | 116 | 12818 | 111 | D1 | L4 | E4-EPWD1L4.ies | 04/30/14 |
| E5-EPWD1L1 | 5000-5800K | 144 | 14788 | 103 | D1 | L1 | E5-EPWD1L1.ies | 03/10/14 |
| E5-EPWD1L4 | 5000-5800K | 144 | 16103 | 112 | D1 | L4 | E5-EPWD1L4.ies | 04/30/14 |
| E6-EPWD1L1 | 5000-5800K | 170 | 17745 | 104 | D1 | L1 | E6-EPWD1L1.ies | 03/10/14 |
| E6-EPWD1L4 | 5000-5800K | 170 | 19275 | 113 | D1 | L4 | E6-EPWD1L4.ies | 04/30/14 |
| E7-EPWD1L1 | 5000-5800K | 203 | 20703 | 102 | D1 | L1 | E7-EPWD1L1.ies | 03/11/14 |
| E7-EPWD1L4 | 5000-5800K | 203 | 22460 | 111 | D1 | L4 | E7-EPWD1L4.ies | 04/30/14 |
| E8-EPWD1L1 | 5000-5800K | 232 | 23580 | 102 | D1 | L1 | E8-EPWD1L1.ies | 03/11/14 |
| E8-EPWD1L4 | 5000-5800K | 232 | 25636 | 111 | D1 | L4 | E8-EPWD1L4.ies | 04/30/14 |
*The above data is based on BBELED lab test result, and is kept updating, changes will be not informed.
