LED Street Lights LSI TM Series

BBE® LSI series LED roadway, street & area lighting luminaires were improved with variouse features based on old LED luminariesduring the assembly, mounting, operation and the customer's updating requirements. Especially the construction & optics improvement allows more easy instation and maintanence, optimizes the environmental protoection and lighting performance. LSI series provides a superior credible lighting solution for you all.

Features and Specifications

Application

LSI series luminaire is designed for roadway lighting for pedestrian and alley ways, streets and highways. Area and site
lighting for parking lot, playground, sport area, campuses etc. Available to replace traditional MH or HPS luminaires up
to 600W.

Download

LED Street Light LSI Series

V2: LSI-15/01/17

  • LED Street Lights LU Series
  • LED Street Lights LU Series
  • LED Street Lights LU Series
  • LED Street Lights LU Series

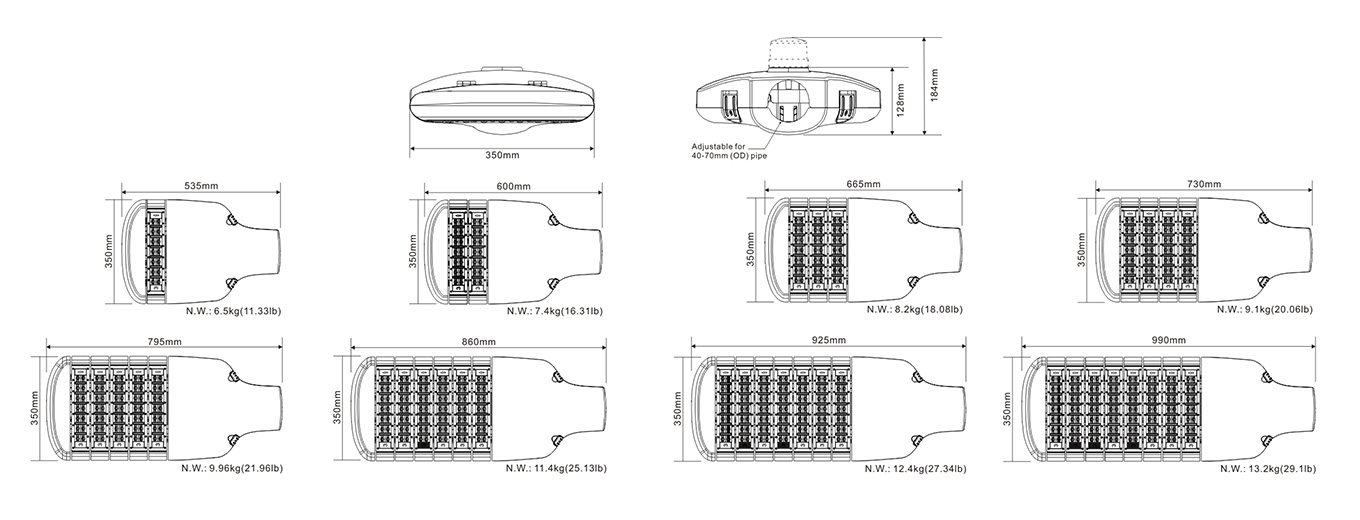

Construction

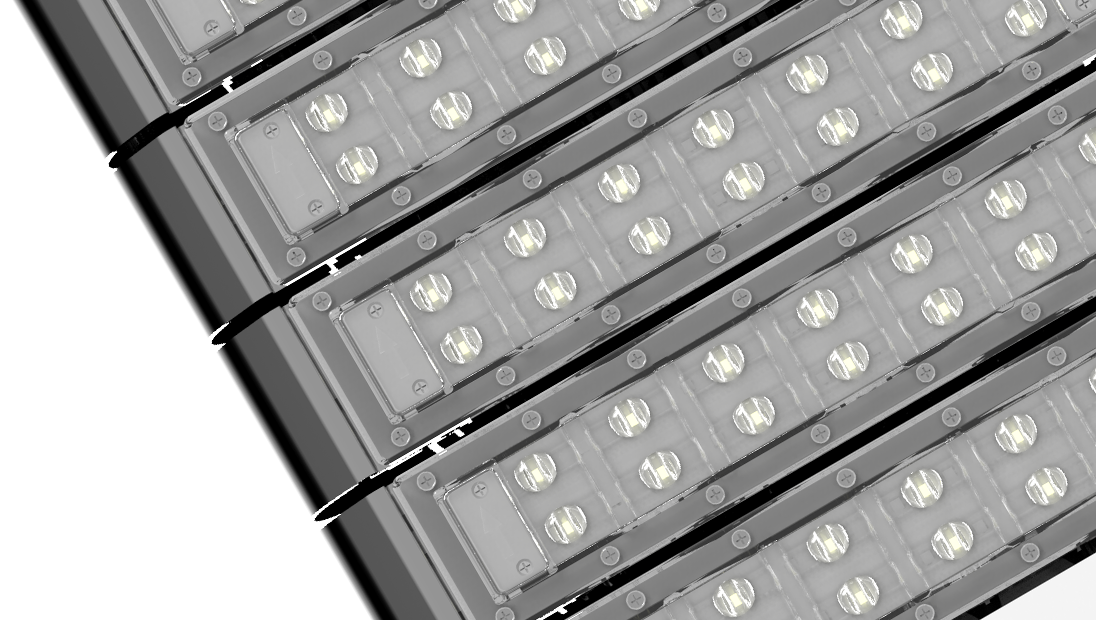

LED & Optics

Advanced CREE LED technology is applied for high efficiency and long life (Calculated
L70>100,000h @ Ta=25C/77F). IESNA LM80 approved and LM79 tested.

Pure white 5000K (4700-5300K) & Natural white 4000K (3700-4300K) with CRI>70,
allowed by ANSI C78.377. LPW up to118 @ 700mA is available.

Precise optic lens in high intensity polycarbonate material with IESNA Type II & Type III
cut-off provides high uniformity and optimal luminaire spacing, the optical system
optimizes the light distribution, eliminate the waste of light, promotes the reasonable
and effective using of light.

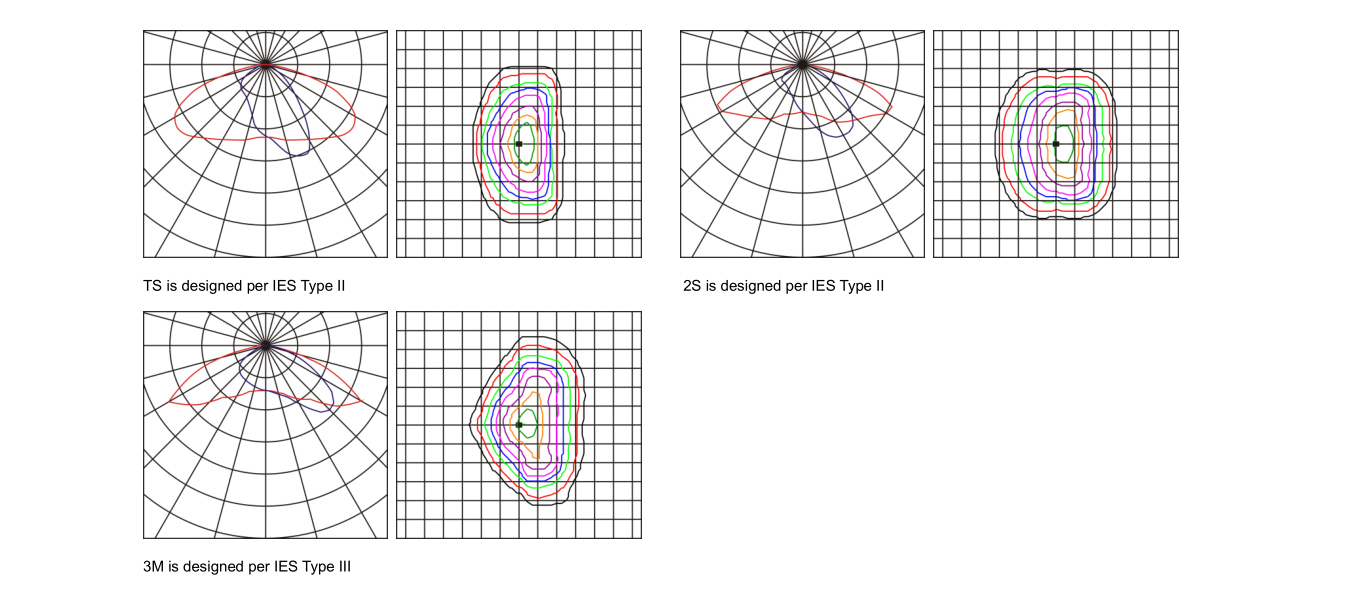

TS is designed per IES Type II

TS is designed per IES Type II

2S is designed per IES Type II

2S is designed per IES Type II

3M is designed per IES Type III

3M is designed per IES Type III

Cat. No. Driver
current(mA)
CCT Rated
Lumen(lm)
Rated Power
(W)
Efficiency(LPW) L70@25℃ Driver Life@25℃
LSI1 1050 4000K/5000K 5000 50 100 >100000h >100000h
LSI1 700 4000K/5000K 3400 30 110 >100000h >100000h
LSI2 1050 4000K/5000K 10000 100 100 >100000h >100000h
LSI2 700 4000K/5000K 6900 60 115 >100000h >100000h
LSI3 1050 4000K/5000K 15000 150 100 >100000h >100000h
LSI3 700 4000K/5000K 10350 90 115 >100000h >100000h
LSI4 1050 4000K/5000K 20000 200 100 >100000h >100000h
LSI4 700 4000K/5000K 14000 120 116 >100000h >100000h
LSI5 1050 4000K/5000K 25500 250 102 >100000h >100000h
LSI5 700 4000K/5000K 17700 150 118 >100000h >100000h
LSI6 700 4000K/5000K 21200 180 118 >100000h >100000h
LSI7 700 4000K/5000K 24400 210 116 >100000h >100000h
LSI8 700 4000K/5000K 28300 240 118 >100000h >100000h

*The above data is rated lumen and power, the real tested data will be something different, due to the rapid and continuous advances
in LED technology. LED luminaire data is subject to change without notice.

Electronics

Philips Advance universal driver is available in 220-240Vac or 120-277Vac, 50/60Hz, power factor >0.95 and THD >15% at full load. Class I output.
Current Selector is optional for 350mA, 530mA, 700mA & 1050mA.
10KV/10KA surge protection device is allowed for protection to the thunder and electricity fluctuation.
0-10V dimming is integrated, PWM dimming is optional, control by others.
Tool-less 360 degree rotatable twist-lock photocell control ANSI C136.10 compliant in 3-wire, 5-wire or 7-wire is available for options.

Electrical Data:

Number of LEDs LED drive current(mA) Rated Power(W) Total Current (Amp)
220V 230V 230V
LSI1 14 1050
700
50
30
0.23
0.14
0.22
0.13
0.22
0.13
LSI2 28 1050
700
100
60
0.45
0.27
0.43
0.26
0.43
0.26
LSI3 42 1050
700
150
90
0.68
0.41
0.65
0.39
0.65
0.39
LSI4 56 1050
700
200
120
0.91
0.55
0.87
0.52
0.87
0.52
LSI5 70 1050
700
250
150
1.14
0.68
1.09
0.65
1.09
0.65
LSI6 84 700 180 0.82 0.78 0.78
LSI7 98 700 210 0.95 0.91 0.91
LSI8 112 700 240 1.09 1.04 1.04

Listings

CE approved, CB tested by TUV, RoHS compliant.

Warranty

5 years limited

Note: all specifications subject to change without notice.
