INTESOLAR SERIES
Integrated Solar LED Street Light
Integrated design PIR & Microwave sensor Multiple bracket
Integrated Solar LED Street Light
Integrated design PIR & Microwave sensor Multiple bracket
ITS8 8W
ITS15 15W
ITS30 30W
Absorbing the inspiration and power from universe, this integrated solar-powered LED street light covers an optimal combination of green energy. It integrated with micro controller, PIR sensor and other controlling technologies. All in one structure enables brighter effect at low power, long lifespan, maintenance free, and convenient installation.

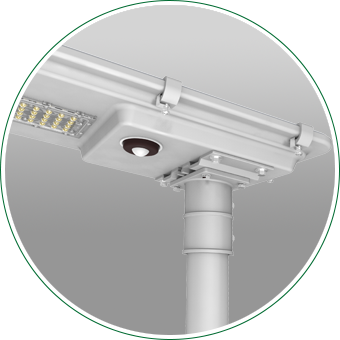

Intelligent controller can fit PIR or Microwavesensor,
ensure the effective lighting.
Detection range: under the light 8-10m
(standard configuration)
Detection range: 360 degrees, 0-15m
adjust vivid light mode

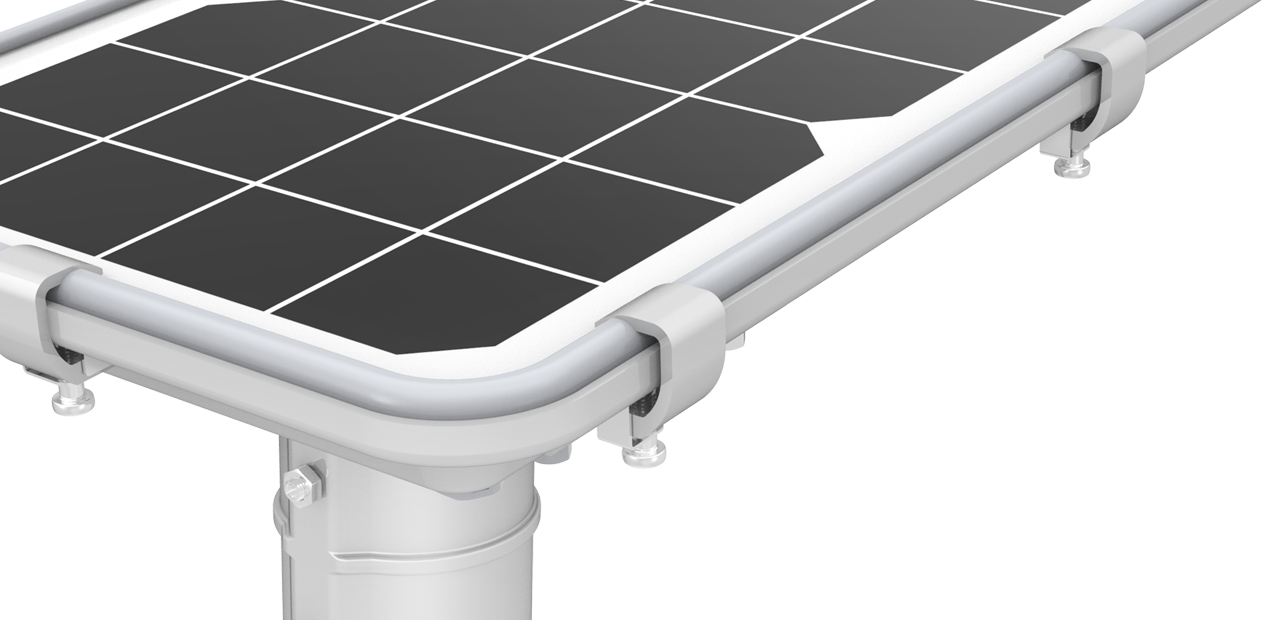

Powder coating art for better anti-corrosion and anti-aging effect
IP65 rated for superior resistance to water and particles

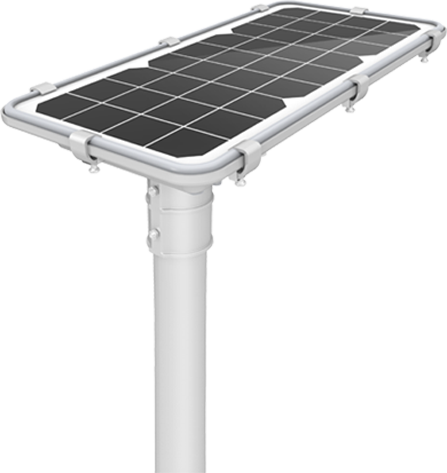

Multiple brackets and mounting angles are available to maximize versatility in installation and application.
Post-Top
Fixed Angle
Post-Top & Side-Entry
Angle Adjustable （-90~+90°）
Yoke mounting
Angle Adjustable（-90~+90°）
Side-entry
Fixed Angle
Widely apply in subordinate road, street, industry, park, village, remote area, courtyard, school, square, and some other outdoors lighting areas.
Branch
Factory Road
Remote areas
Parking lot
| Product Model | ITS8 | ITS15 | ITS30 |
|---|---|---|---|
| Power | 8W | 15W | 30W |
| Solar Panel Power | 17.5W SCS | 30W SCS | 75W SCS |
| Battery Capacity | 9.6AH LiFePo4 | 16AH LiFePo4 | 32AH LiFePo4 |
| Luminous Flux | 1273 | 2445 | 5210 |

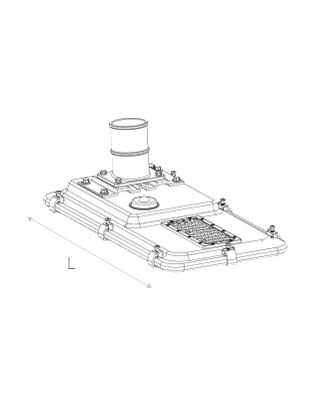

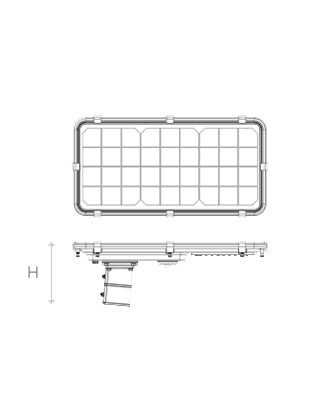

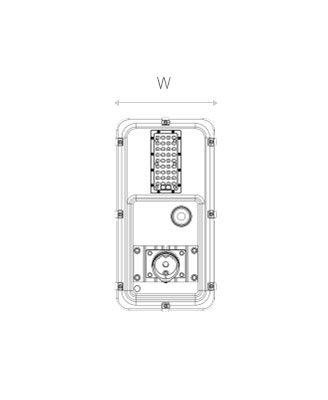

| Dimension (L*W*H) | 538*283*177 mm | 677*367*254 mm | 1063*526*259 mm |
| Luminous efficacy | ≥160 | ||
| Beam Angle | 150°x70° | ||
| CCT | WW、 NW | ||
| IP Rating | IP66 | ||
| Discharge time | 7-8h effective charging time, ≥12h total power/ Smart mode 4-5days | ||
| Solar cell efficiency | ≥17% | ||
| Mounting Height | 4~6m | ||
| Operating Temperature | -10°C ~ 60°C | ||
| Diameter | 50~60mm | ||
| Warranty | 3yrs | ||
Integrated design and convenient installation；Easy components replacement and cost effective.

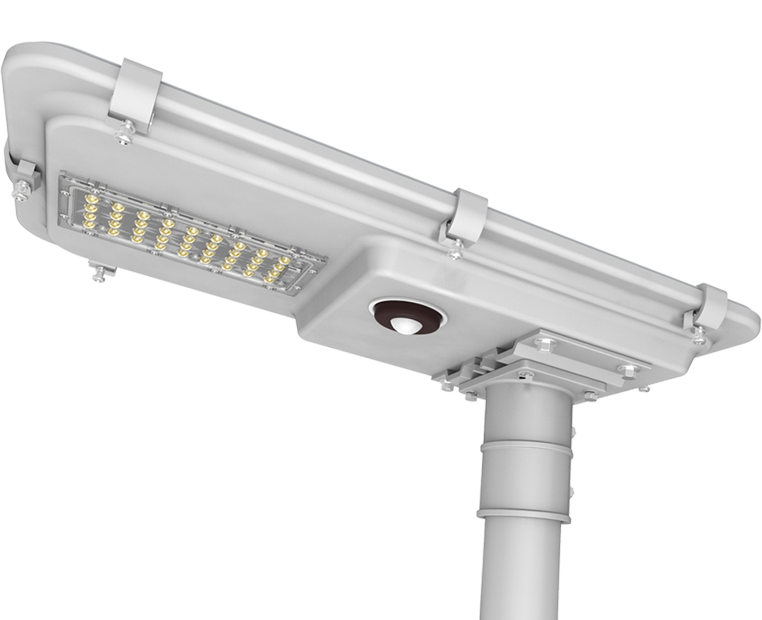

Smart controller with PIR sports sensor ensures luminous performance.
IP66.
Waterproof connectors with foolproof color design can prevent going wrong.
Diverse light arms are suitable for different latitude and different light pole installation.
Wind-resistant Level: 65m/s, Certificate No.：JK-FG2016W018
Powder coating design for corrosion prevention over 500hours.
Being suitable in Factories, mines, oil, chemical workshops, storerooms, highway toll stations, gas stations, supermarkets, exhibition Hall and other inflammable and explosive places for lighting.
daytime
Sensor idle
Heat source movement
|
nighttime Turn on when the illuminancy below 100lux |
Induction time | Sensor idle | Heat source movement |
|---|---|---|---|
| 0-4 hours | 100% | 50% | |
| 4-6 hours | 60% | 30% | |
| 6-12 hours | 50% | 20% | |
| daytime | off automatically | ||
