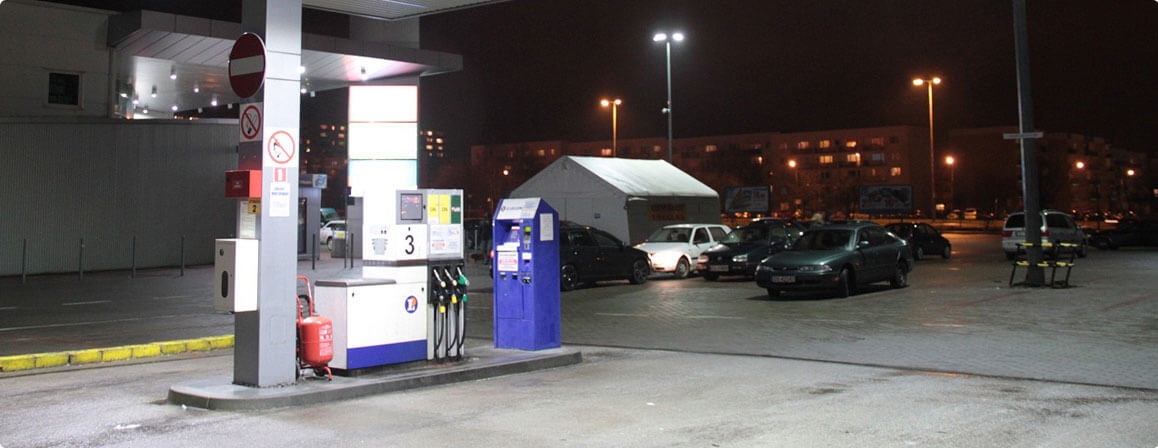

General lighting for all kinds of roadways, avenues, street etc., and even area and site lighting for parking lot,
playground, sport area etc. Available to replace traditional MH or HPS luminaires.
Anodized extruded heat sink design provides perfect heat management to guarantee long life of the LED.
Modular design optimizes construction and assembly, allows for easy maintenance, upgrade and SKD purchasing for local assembly.
High tempered glass with over 90% light transmission rate allows for high efficiency of the light using and protection.
Recessed mount application with single and double deck mounting system to the existing openings is not allowed any changes.
IP65 (EN60529 compliant) rated to the luminaire.

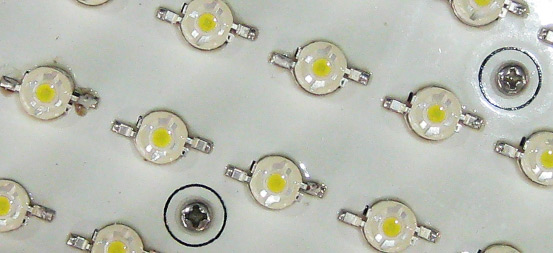

Eutectic led packaging technology is applied for low heat resistance, low light degradation, high efficiency and long life (Projected L70>50000h @ Ta 25C). High efficiency Pure white (5000-5800K) & Warm white (4000-4500K) with CRI 70 rated or customized CCT LED are available.

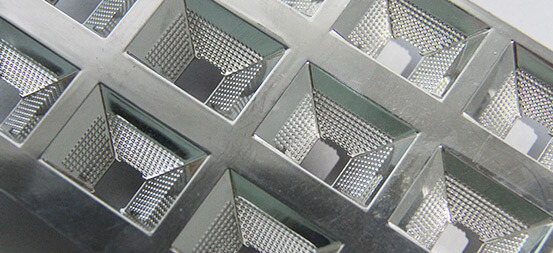

Precise optical reflector with professional light distribution in symmetry and asymmetry design provides high uniformity and optimal luminaire spacing, the optical system optimizes the light distribution, eliminate the waste of light, increase the reasonable and effective using of light.
Universal driver is available in 100-240Vac, 50/60Hz, power factor > 90% and THD <20%.
IP67 waterproof driver with over current, over voltage, and short circuit protection.
RoHS compliant
5 years limited
Note: all specifications subject to change without notice.

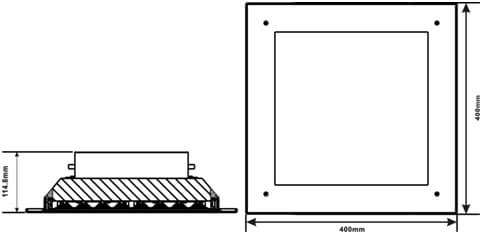

Length: 400mm (15.75inch)
Width: 400mm (15.75inch)
Height: 114.8mm (4.52inch)
Weight: 8kg (17.6lb)
Meas.: 0.041cbm, G.W.: 10kg (22.0lb)
dimension is in mm (inch), kg(lb)
Series | #of LED | - | Voltage | CCT | Optics | LED level | - | Options |
LE | 72 | - | E | PW | S | L1 | - | |
LE | 72 | E: 100-240Vac | NW: 4000-4500K PW: 5000-5800K |
S: Symmetry A: Asymmetry |
L1: Level 1 (standard) L4: Level 4 (hi-efficiency) |
*Consult your sales representative for the options and the lead time will be varied depending on the options selected
Number of LEDs | LED drive current(mA) | Rated Power(W) | Total Current (Amp) | |||||
120V | 220V | 230V | 240V | |||||
LE72 | 72 | 350 | 90 | 0.74 | 0.4 | 0.39 | 0.37 |
Type | |

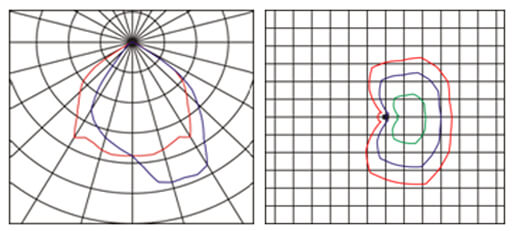

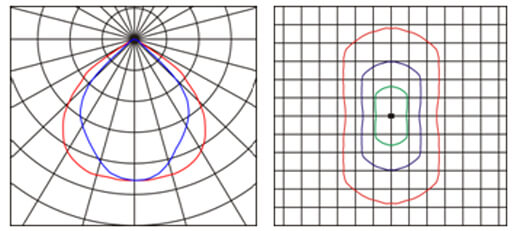

S: Symmetric type | A: Asymmetric type |
Cat No. | CCT | Power (W) | Initial Lumen (lm) | Efficiency (LPW) | Optics | LED level | IES file | IES DATE (mm/dd/yy) |
LE72-EPWSL1 | 5000-5800K | 89 | 7716 | 87 | S | L1 | LE72-EPWSL1.ies | 03/31/14 |
LE72-EPWAL1 | 5000-5800K | 86 | 7858 | 91 | A | L1 | LE72-EPWAL1.ies | 04/11/14 |
LE72-EPWSL4 | 5000-5800K | 89 | 8434 | 95 | S | L4 | LE72-EPWSL4.ies | 04/30/14 |
LE72-EPWAL4 | 5000-5800K | 86 | 8588 | 100 | A | L4 | LE72-EPWAL4.ies | 04/30/14 |
LE72-ENWSL1 | 4000-4500K | 89 | 7176 | 81 | S | L1 | LE72-ENWSL1.ies | 04/30/14 |
LE72-ENWAL1 | 4000-4500K | 86 | 7308 | 85 | A | L1 | LE72-ENWAL1.ies | 04/30/14 |
LE72-ENWSL4 | 4000-4500K | 89 | 8389 | 94 | S | L4 | LE72-ENWSL4.ies | 04/29/14 |
LE72-ENWAL4 | 4000-4500K | 86 | 8543 | 99 | A | L4 | LE72-ENWAL4.ies | 04/29/14 |
*The above data is based on BBELED lab test result, and is kept updating, changes will be not informed.
