NOVIGO series
LED Linear High Bay LightPHILIPS light source & driver
5 Yrs Warranty >50,000h life span
PHILIPS light source & driver
5 Yrs Warranty >50,000h life span

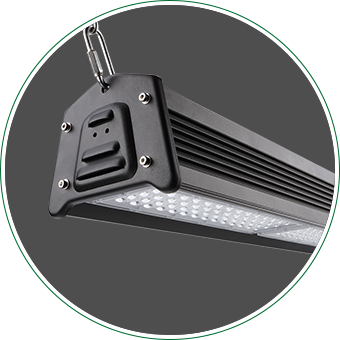

Novigo Series LED Linear Light features adoption of Philips Light Source and Power Supply with high quality, great energy conservation, high luminance and long lifespan. The light shell adopts 6063 aluminum material and special surface oxidation technology for rapid heat dissipation, which ensures its service life up to more than 50,000 hours. The product, luminous efficiency about 1201m/W，emits soft and well-distributed light along with brighter effect and great color rendering. This product adopts constant current power supply with high efficiency, low heat and high accuracy of constant current.

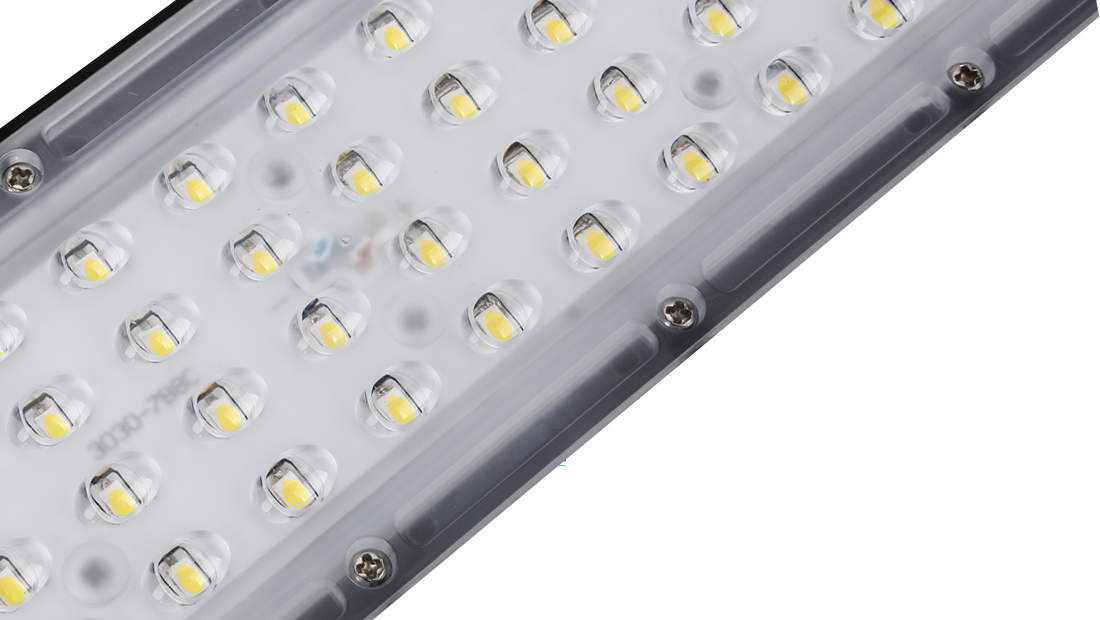

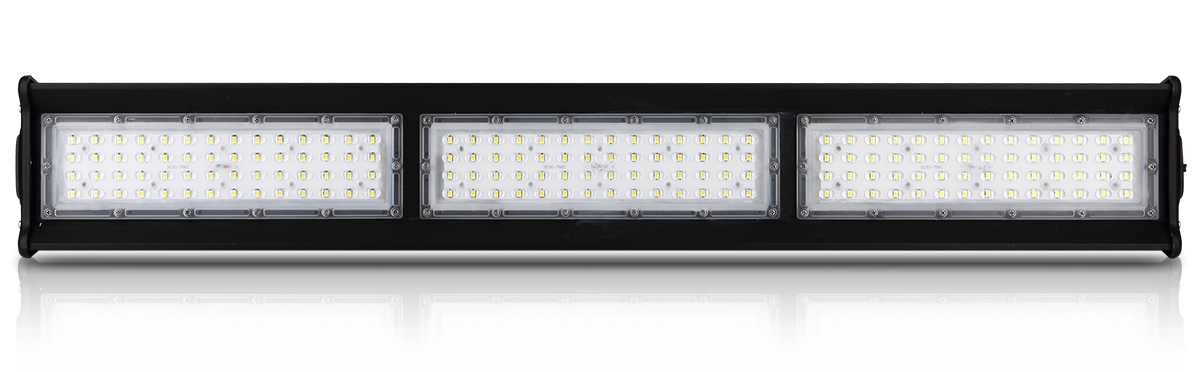

High-quality light source and energy conservation over
60% compared to traditional products.
Luminous Efficiency:120lm/W

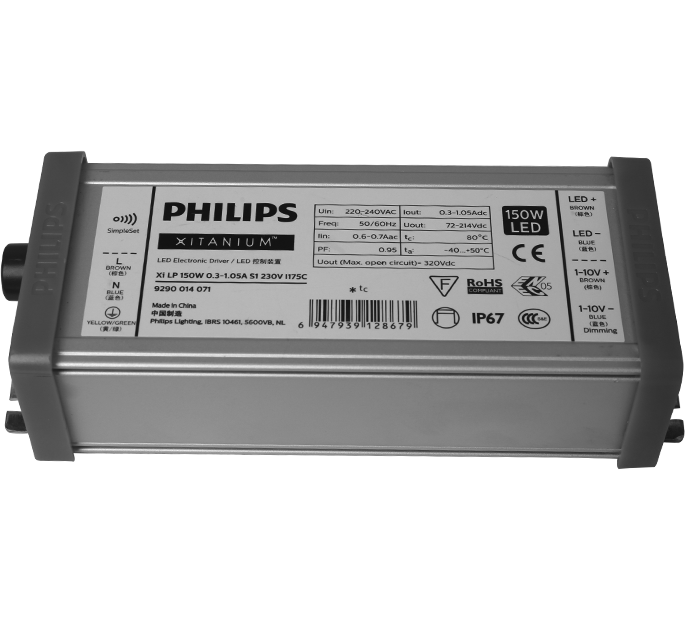

High-quality power supply
High quality quick start

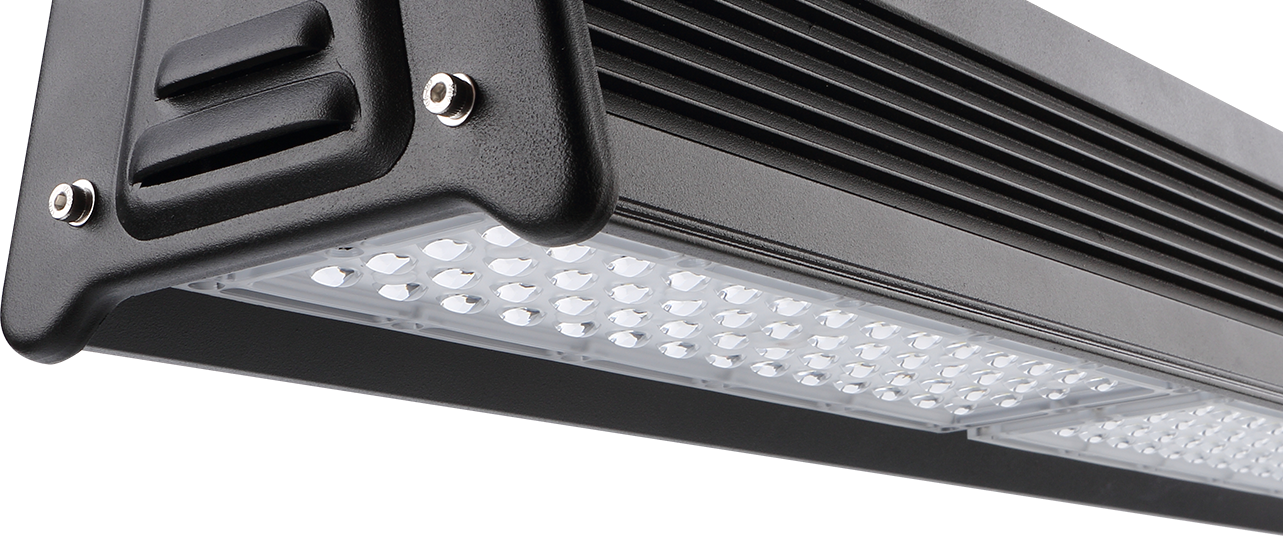

No glare
No noise

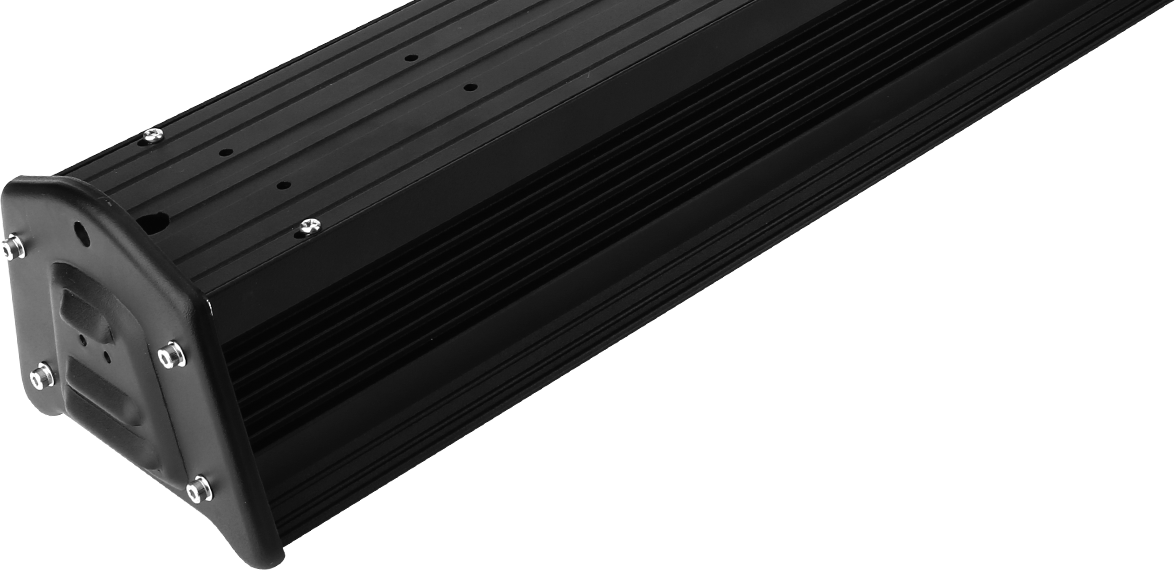

Shell:Made of aluminum alloy with high strength, great
anti-corrosion and weatherability, perfect heat
dissipation.
Aim to where the light goes.
Apply in Factories, mines, oil fields, chemical workshops, storerooms, highways, toll stations, gas stations, supermarkets, exhibition Halls, smelteries and other inflammable and explosive places for illumination.
Factories
Highway toll station
Supermarket
Gas station
Chemical workshop
Storeroom
Exhibition halls
OEM & ODM are acceptable!
| Product Model | NVG50 | NVG100 | NVG150 | NVG200 | NVG250 | NVG300 |
|---|---|---|---|---|---|---|
| Power | 50W | 100W | 150W | 200W | 250W | 300W |
| Input Voltage | 220-240Vac | |||||
| Input Current | 0.23A | 0.46A | 0.69A | 0.91A | 1.14A | 1.37A |
| Frequency | 50/60Hz | |||||
| Power Factor | 0.95 | |||||
| Total Harmonic Distortion | ＜20% | |||||
| CCT | 3000-6500K | |||||
| Rated Luminous Flux | 6000lm | 12000lm | 18000lm | 24000lm | 30000lm | 36000lm |
| Luminous Efficacy | 120lm/W | |||||
| CRI | Ra>80 | |||||
| Beam Angle | 90°、65*100°、40*100°、70*135° | |||||
| Light Transmittance | 0.9 | |||||
| IP Grade | IP66 | |||||
| Surge | 6KV | |||||
| Dimmer | × | √ | √ | × | × | × |
| Sensor | √ | √ | √ | √ | √ | √ |
| Operating Temperature | -40～50℃ | |||||
| Lifespan | 50,000h | |||||

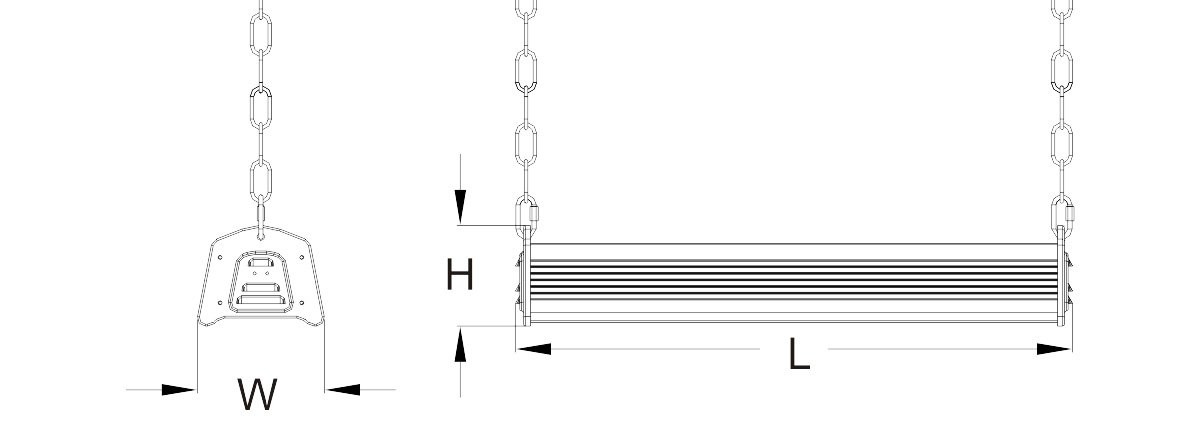

| Dimension L*W*H(mm) | 329*142.2*112.5 | 624*142.2*112.5 | 919*142.2*112.5 | 1214*142.2*112.5 | 1509*142.2*112.5 | 1804*142.2*112.5 |
| Net Weight | 2.48kg | 4.13kg | 5.61kg | 7.31kg | 8.73kg | 11.07kg |
| Gross Weight | 3.08kg | 4.9kg | 6.51kg | 8.41kg | 10.23kg | 13.30kg |
| Carton Size | 495*230*165 | 795*230*165 | 1090*230*165 | 1385*230*165 | 1680*230*165 | 1975*230*165 |
Adopt high-quality LED as green light source with energy conservation over 60% compared to traditional products.
Long lifespan over 5 years in normal environment.
Equipped with soft and well-distributed interior light along with brighter luminance. Great color rendering, more authentic performance of object color and more choices of different light colors can meet different environment requirement.
Instant start, no glare and no noise.
Light body is made of aluminum alloy materials with high intensity, great anti-corrosion and weatherability, perfect heat dissipation and prevention for lightning strike.
Green technology conforms to the rules of RoHS.
No radio interference and free adjustment of Luminance.
