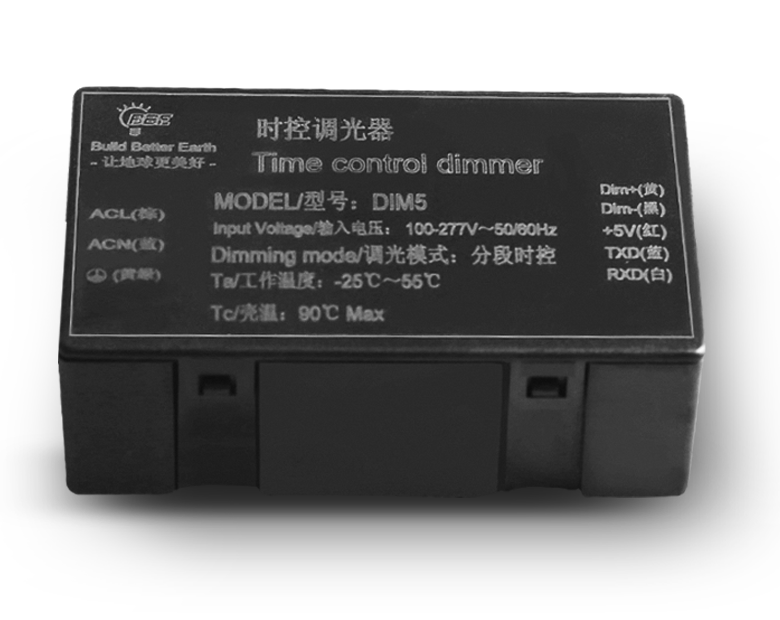

DIM 5 Clock Dimmer
It is a dimming controller to adjust luminaire brightness as
pre-set time and brightness. It can set maximum 5 dimming.
It is a dimming controller to adjust luminaire brightness as
pre-set time and brightness. It can set maximum 5 dimming.
0-10V international linear dimming achieves the required brightness level.
Input voltage is a standard 120-277Vac, conforming to various standards globally.
Integrated design with IP67 protection level.
External program writing is available.
Default setting is 3 dimming modes. (Dimming mode can be set as
customized requirement.)
| 0-6 HOURS | 6-9 HOURS | 9-OFF |
| 100% | 50% | 30% |
| Model | Clock Dimmer |
|---|---|
| Power | ＜2W |
| Input Voltage | 100-277Vac 50/60Hz |
| Dimming Interface | 0-10V |
| Dimming Range | 10%-100% |
| Dimming Mode | Built-in Dimmer（5 grade MAX） |
| External Program Writing | Support |
| Operating Temp | -25-55℃ |
| Storage Temp | -40-85℃ |
| Surge Protection Grade | 2KV |
| Size | 72*56*24.5mm |
| Net Weight | 162g |
| IP Rating | IP67 |
